The AB=CD pattern is a price structure where each price leg is equivalent. The Fibonacci numbers in the pattern must occur at specific points. In an ideal AB=CD pattern, the C point must retrace to either a 0.618 or 0.786. This retracement sets up the BC projection that should converge at the completion of the AB=CD and be either a 1.27 or 1.618. It is important to note that a 0.618 retracement at the C point will result in a 1.618 BC projection. A 0.786 retracement at the C point will result in a 1.27 projection.
The most important consideration to remember is that the BC projection should converge closely with the completion of the AB=CD. The AB=CD is the cornerstone of all of the harmonic patterns.

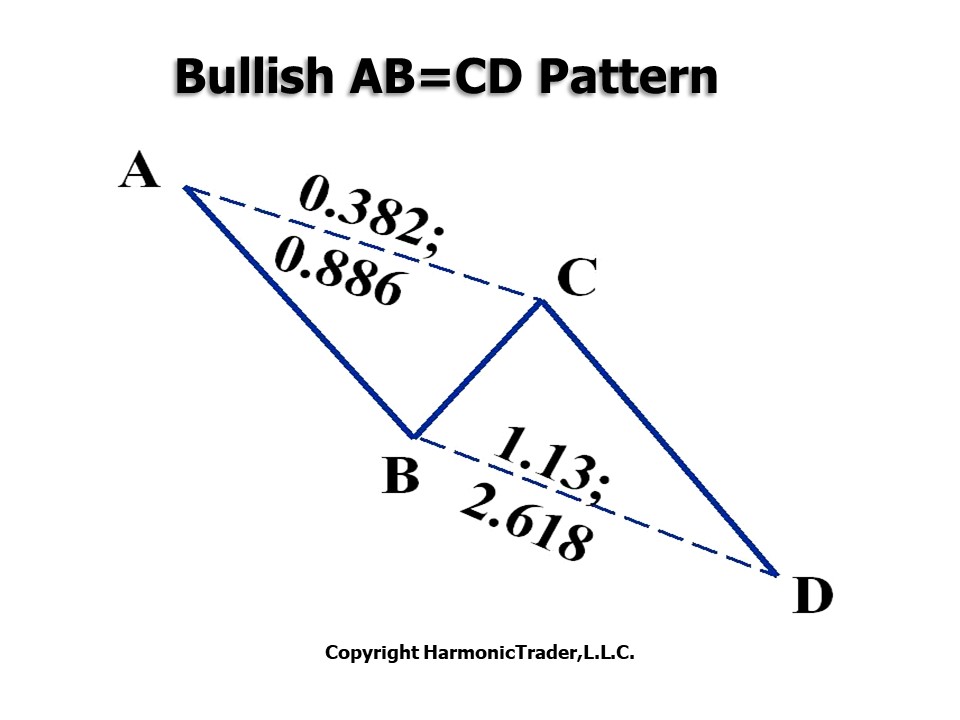

 Bullish AB=CD |

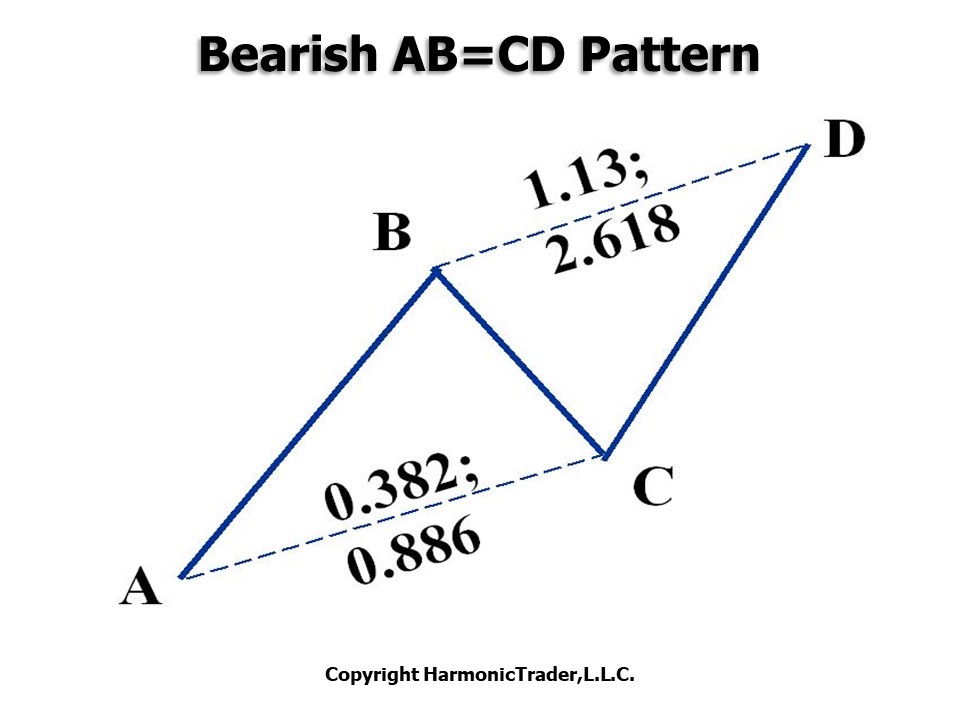

 Bearish AB=CD |
The AB=CD pattern can be toggled on or off by checking/unchecking the Show ABCD? checkbox in the Settings dialog.
The Terminal Bar is the price bar that reaches the minimum pattern completion requirements and will always be identified by the ☼ symbol.
See Also:
