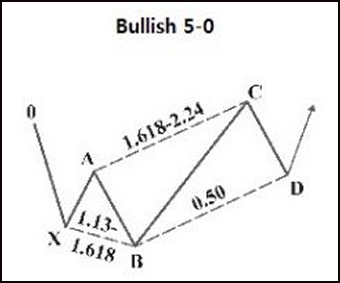

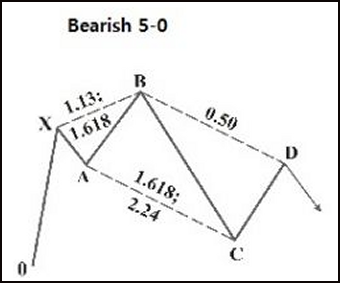

The 5-0 Pattern is a unique structure that possesses a precise alignment of Fibonacci ratios to validate the pattern. Although the 5-0 is considered a retracement pattern, as the 50% retracement is the most critical number within the Potential Reversal Zone, the measurements of the various price legs are slightly different than the Bat or the Gartley.
The 5-0 is within the family of 5-point harmonic reversal structures and is primarily defined by the structure’s B point – as is mandatory for all harmonic patterns. However, the 5-0 requires a reciprocal AB=CD measurement to define the pattern’s completion. The basic premise of the pattern is to identify distinct reactions following the completion of a contrary trend. Valid 5-0 patterns typically represent the first pullback of a significant trend reversal. In many instances, the AB leg of the structure is a failed final wave of an extended trend.
The 5-0 pattern can be toggled on or off by checking/unchecking the Show 5-0? checkbox in the parameters dialog. All 5-0 patterns start out as Shark patterns, but not all Shark patterns will evolve into a 5-0 pattern.

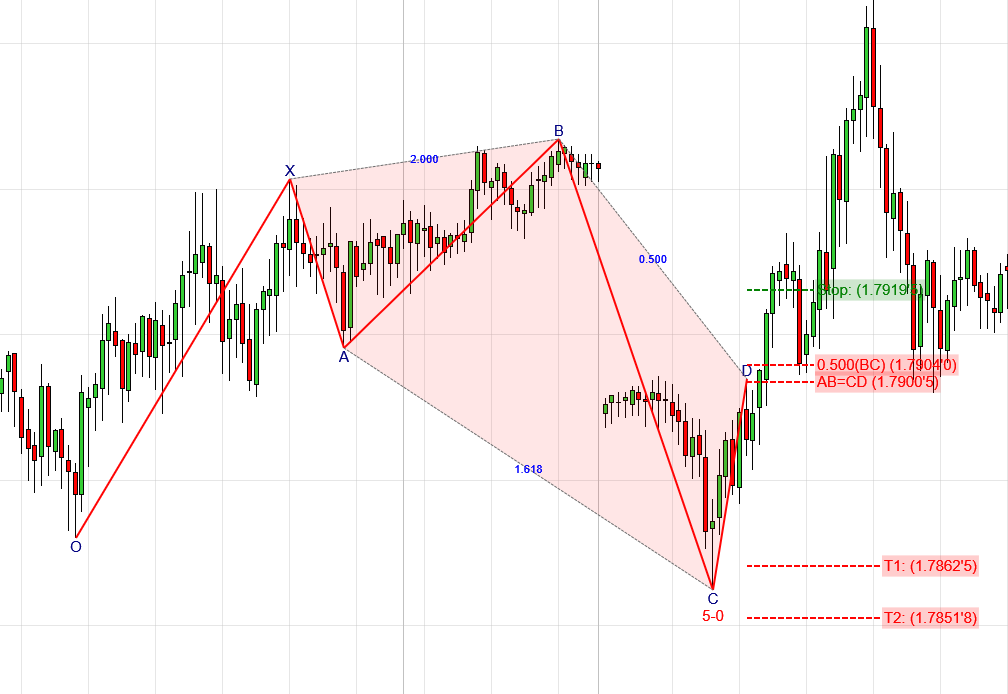

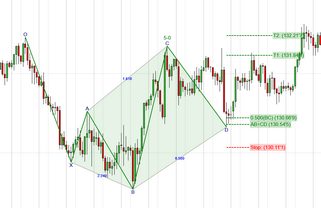

Here are some example 5-0 patterns.
|
|
The Terminal Bar is the price bar that reaches the minimum pattern completion requirements and will always be identified by the ☼ symbol. You can adjust the size via the Terminal Bar Font Size option in Settings.
