The Demo Pages
The easiest way to get up and running with S/R Analyst Pro is make use of the example Demo pages that were included as part of the installation. The benefit to using one of the pages as your starting point is that the correct Time Template has already been attached to all of the components, the eSignal Symbol/Interval linking is already in place, and the eSignal Hibernation option has been turned off for all watchlists. You can pick the page that fits your particular needs the best and then customize it to make it your own.
Two example pages are included with the installation. See the Getting Started section for step-by-step instructions on how to load one of these pages.

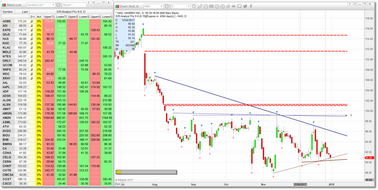

SRAnalystProDemoPage1.page
This page consists of a single watchlist component linked to a single chart component. The S/R Analyst Pro Time Template has been applied to both and the watchlist is linked to the chart by Symbol and by Interval, and params linking has been activated. The default watchlist sort is the Status column in descending order (which will put alerts at the top). If you have a basket of securities that you primarily want to monitor in only one bar interval (or you don't mind periodically changing the bar interval in the watchlist) then this is the page to use. Just replace our default list of symbols with your own and you should be ready to go.

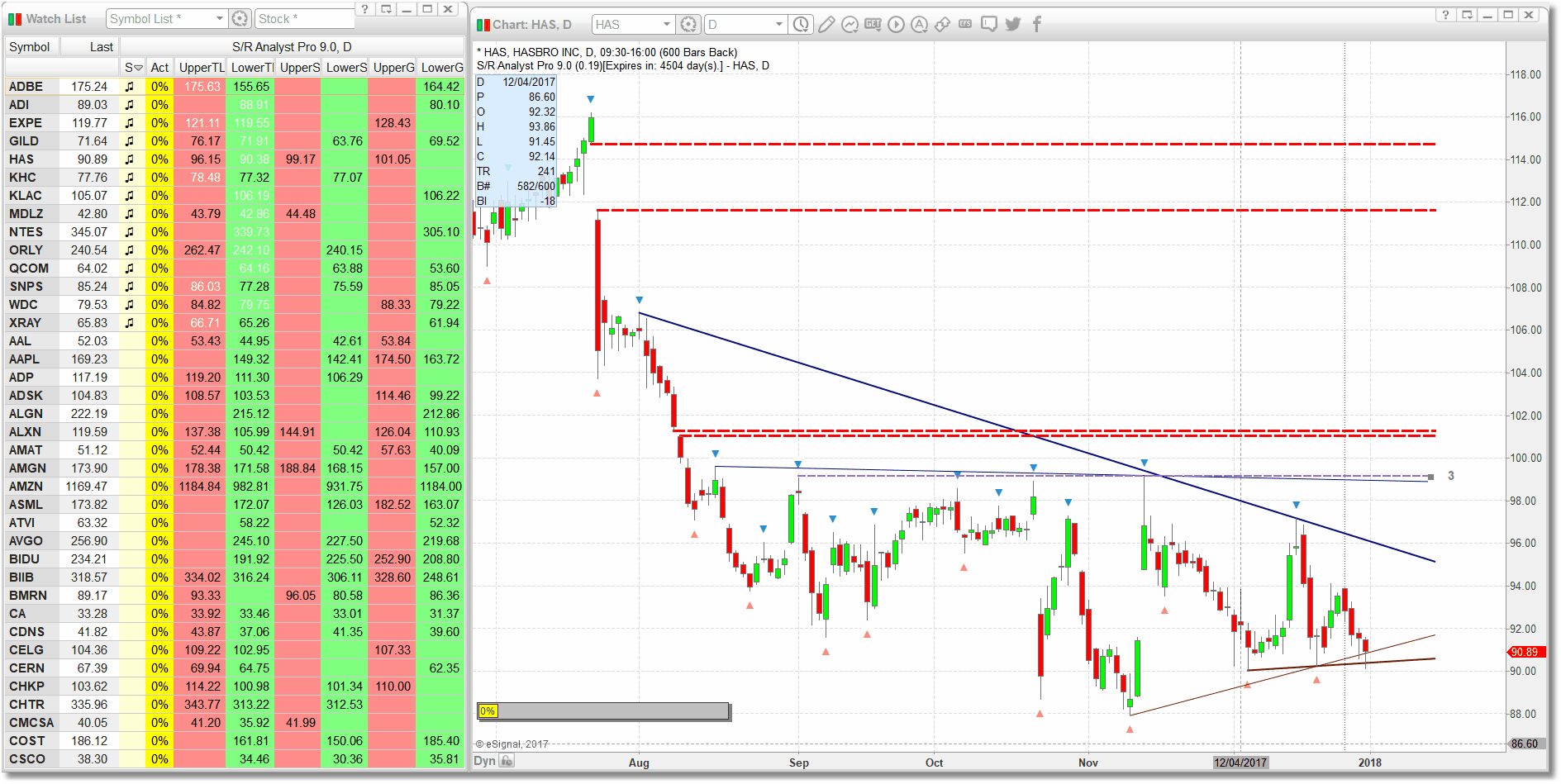

S/R Analyst Pro Demo Page #1

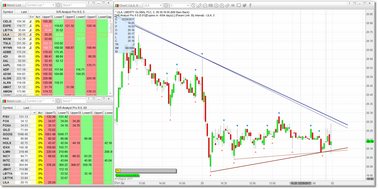

SRAnalystProDemoPage2.page
This page consists of two watchlist components linked to one chart component. The S/R Analyst Pro Time Template has been applied to all components and each watchlist is linked to the chart component by Symbol and by Interval, and params linking has been activated. Each watchlist is running under a different bar interval (in this case, 5-min and 60-min but obviously you can select any intervals you care to use). The default watchlist sort is the Status column in descending order. If you have enough screen real estate this configuration can be easily expanded to include additional watchlist/chart combos to support additional intervals. Just replace the symbol lists with your own and you are ready to go.

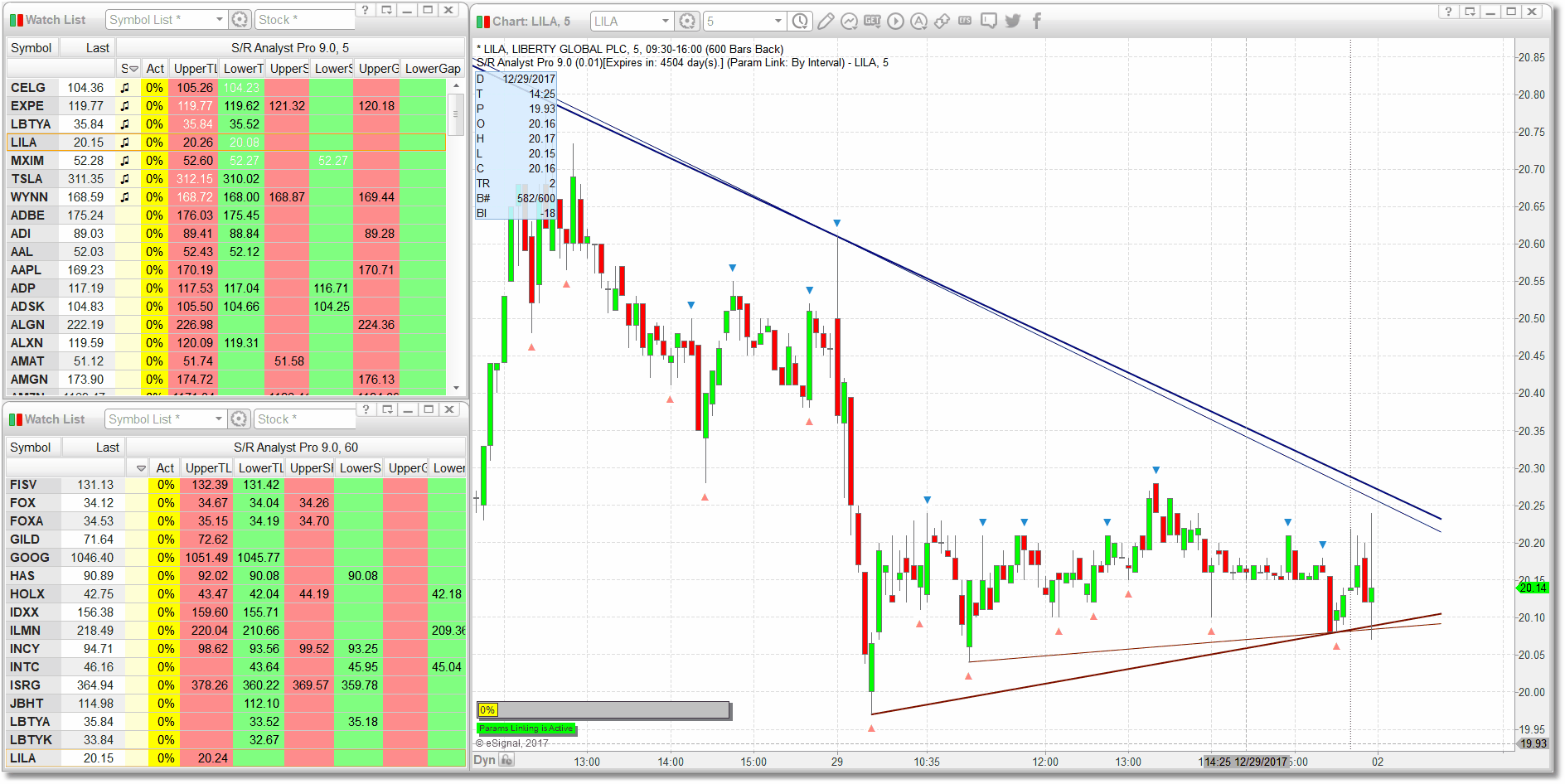

S/R Analyst Pro Demo Page #2
