Crab

Scroll Prev Top Next More

The Crab is a Harmonic pattern discovered by Scott Carney in 2001. The critical aspect of this pattern is the tight Potential Reversal Zone created by the 1.618 of the XA leg and an extreme (2.240, 2.618, 3.140, 3.618) projection of the BC leg but employs an 0.886 retracement at the B point unlike the regular version that utilizes a 0.382-0.618 at the mid-point. The Crab pattern requires a very small stop loss and usually volatile price action in the Potential Reversal Zone.

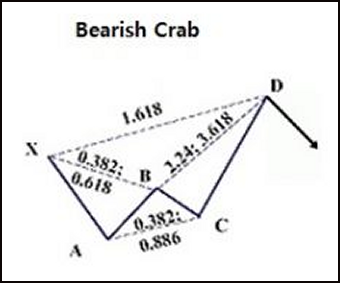

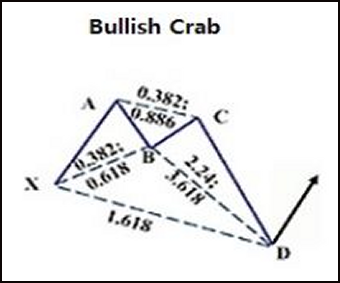

bullishcrab_zoom80 bearishcrab_zoom80



The Crab pattern can be toggled on or off by checking/unchecking the Show Crab? checkbox in the parameters dialog.



Here are some example Crab patterns found in eSignal:

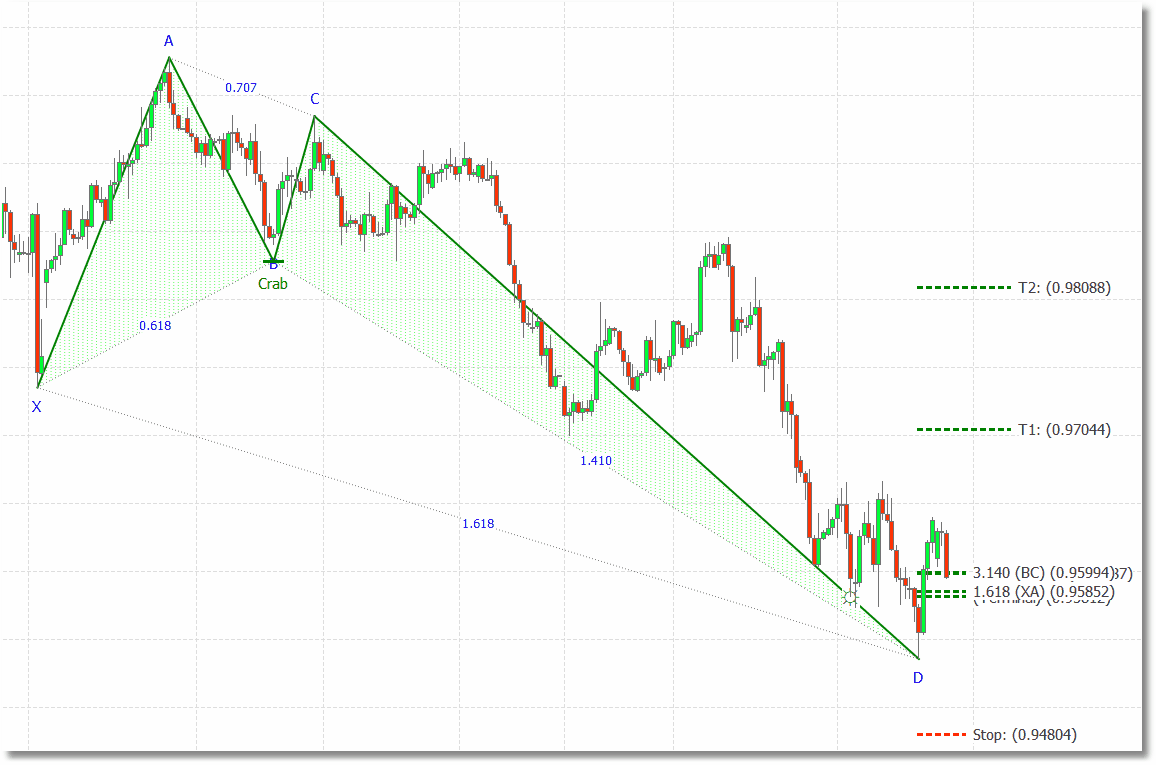

crab_confirmed_bullish1_zoom30

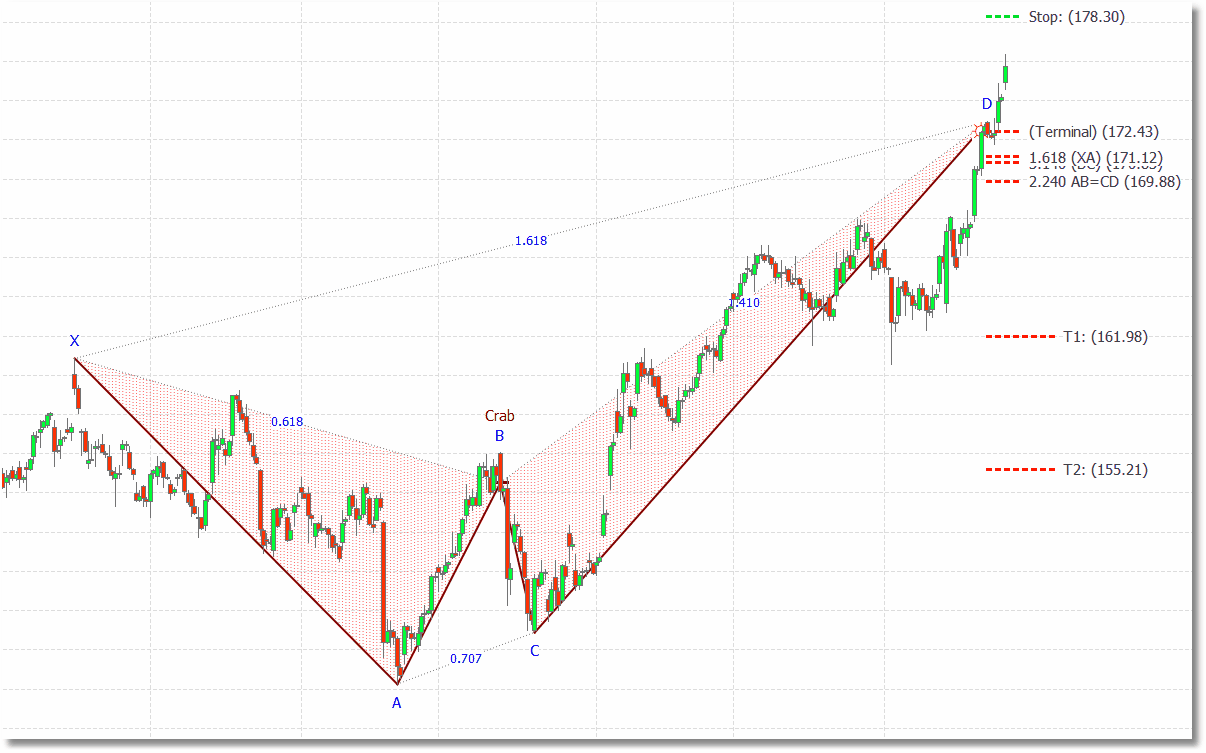

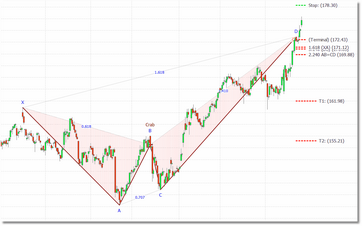

crab_confirmed_bearish1_zoom30



Here are some example Deep Crab patterns found in eSignal.

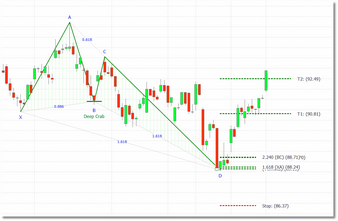

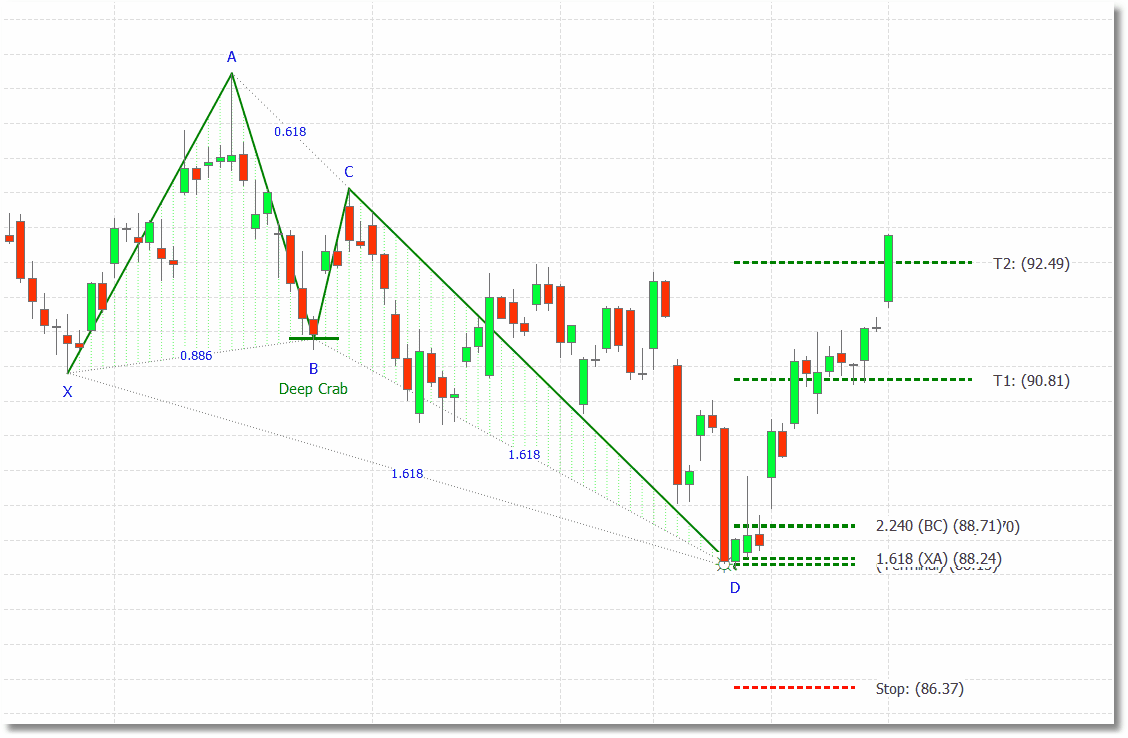

deepcrab_confirmed_bullish1_zoom30

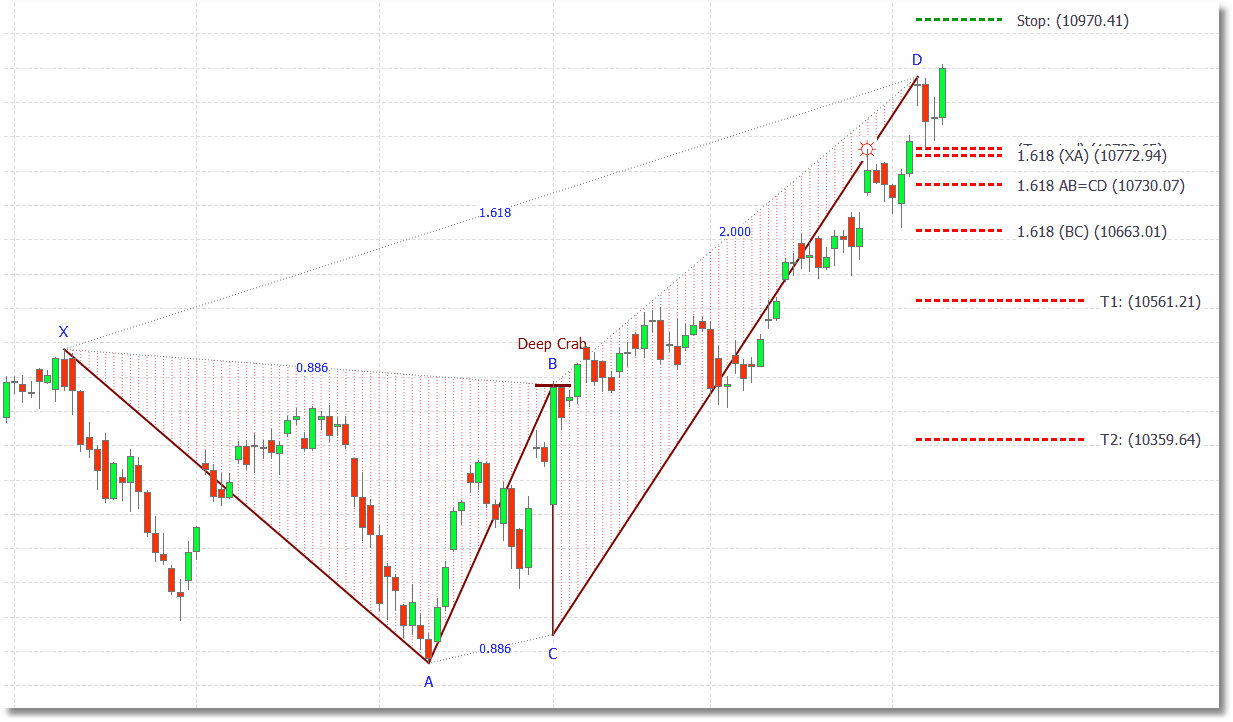

deepcrab_confirmed_bearish1_zoom30



The Terminal Bar is the price bar that reaches the minimum pattern completion requirements and will always be identified by the symbol. You can adjust the size via the Terminal Bar Font Size option in Settings.




See Also:



Settings

Pattern Filters

Zone Lines
